iMX End Mill Series

“Carbide(head)”+“Carbide(holder)”
Double face contact type

Features

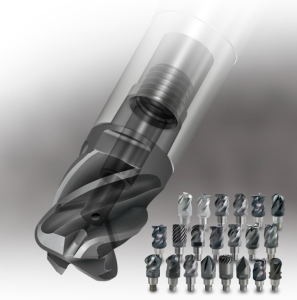

The iMX series is a revolutionary end mill system that enables efficiency, high accuracy and rigidity by combining the advantages of both solid carbide and indexable end mills.
Security and rigidity close to that of a solid type end mill because the clamping faces are all carbide.
Excellent for reduced inventory over a variety of applications due to the exchangeable head.

Highly versatile grades

Tool life comparison when machining flat surfaces in Inconel 718

Comparison of tool rigidity

The double face contact of the carbide head and carbide holder gives an increase in rigidity of 30%.

Strength comparison when slot machining titanium alloy

The reliability of the screw fastening is significantly improved when compared to conventional that employ only steel fastenings. It is also able to cope with high cutting loads.

iMX New Type

Corner radius head with coolant hole, 6 flute, Irregular helix

iMX-C6HV-C High Efficiency Machining Enables Process Consolidation

Tool Integration Achieved

Multi functionality brings efficiency to the entire machining process.

Lollipop head with coolant hole, 4 flute

iMX-B4WH-S

SUS630 Comparison of Vertical Machining

iMX-RC4F-C For Titanium Alloys and Stainless Steels

A corner radius roughing type with a centre through coolant hole. The roughing edge geometry
reduces cutting resistance and is effective for low rigidity and long tool overhang applications.

EP8100 Series (EP8110 / EP8120)

The combination of the (Al,Cr,Si)N coating (newly-developed), which has a high oxidation temperature and high lubricity,together with the (Al,Ti,Si)N coating, which has better wear resistance and high adhesion, allows high strength hardened steel to be machined.

iMX-B3FV

iMX-B2S / iMX-B4S

Corner radius, Taper head, Multi-flute, with coolant hole

Taper radius end mills, (corner radius) were conventionally used for turbine blade finishing. iMX taper radius end mills offer equivalent performance to solid end mills but achieve lower process costs.

Features

Drastically reduces cutting time

Reduces the cusp height when using the same pick feed (ae).

Chamfer Head

Features

Ideal geometry for different chamfering applications.

Steel Holder

Features

Series expansion of steel holders.

Series of cost effective and capable steel holders suitable for lower depths of cut and short overhang applications.

Cutting Performance

Tool life at least 3 times longer than conventional holders.

Duplex corner radius head with coolant hole, 4 flute, For high feed

iMX-C4FD-C

Features

High efficiency machining geometry

Thin chips and a long cutting edge combine to
provide both high performance and long tool life.

Vibration control geometry

Reduced cutting resistance in the radial direction
suppresses tool vibration and reduces deflection.

Cutting Performance

Tool Life Comparison when machining Cobalt Chromium Alloy (DC=10mm)
Tool Life (Co-Cr Alloy)

APPLICATION EXAMPLES

The examples shown are actual applications and can differ from the recommended cutting conditions.
